Panasonic 17″ HD Monitor

SKU: Pana17 Categories: ,

$105.00

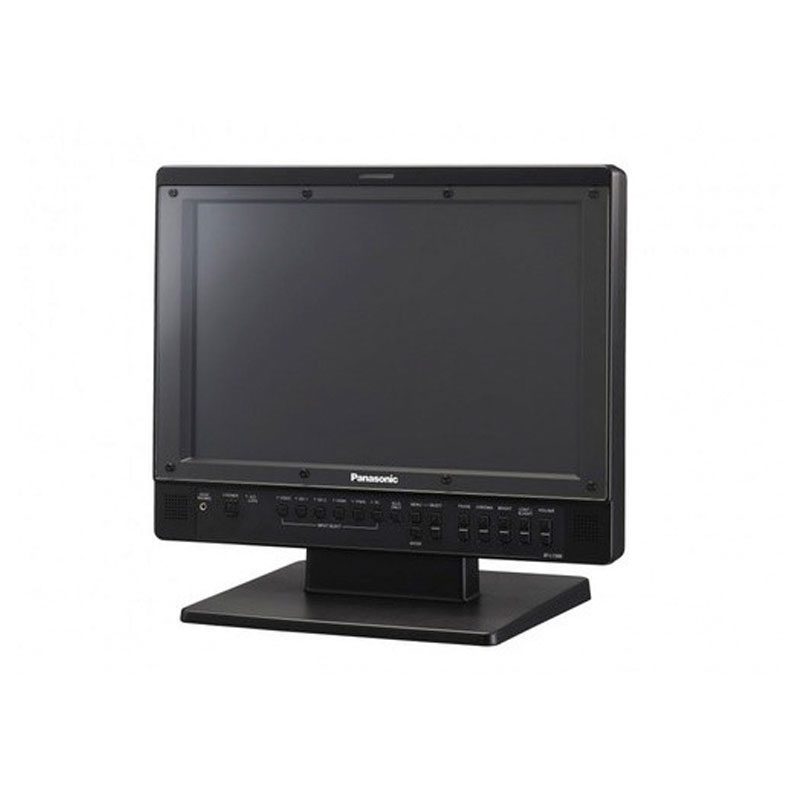

The Panasonic BH-LH1700 Widescreen Flat Panel HD/SD Production Monitor is a broadcast-quality high definition/standard definition LCD monitor for studio and field applications.

Request a Quote

The Panasonic BH-LH1700 Widescreen Flat Panel HD/SD Production Monitor is a broadcast-quality high definition/standard definition LCD monitor for studio and field applications.

Specification

  • Waveform monitor – a superimposed function that graphically displays luminance levels from zero to 110 IRE in any of the monitor’s four corners
  • Freeze frame / split screen – frame grab for scene comparison and critical color matching
  • Two dual-rate SDI HD or SD inputs – (one with Thru-Out) with auto sensing
  • Component Input on BNC connectors – Y Pb Pr and PC RGB inputs
  • Faithful color reproduction – closely matches chromatic ranges of CRT monitors
  • Diagonal line compensation – smoothes out jaggies for improved SD response
  • WXGA resolution (1280 x 768)
  • 176 degree viewing angle up/down and left/right
  • One-piece design – no umbilical cord or separate AC power supply
  • Frame marker lines – 4:3 16:9 2.35:1 or background shading at 0% 50% or 100%
  • Amplified stereo speakers – two RCA pin jacks input or optional de-embedded audio on SDI
  • AC or DC power – 117 Volt AC or 12 Volt DC inputs (4-pin XLR)
  • Color temperature selection – D9300K / D6500K / D5600K / User Settable
  • CineGammaTM (FILM-REC) compensation – expressly for VariCam monitoring
  • GPI and RS-232C ports for external control
  • Preset / manual picture adjustments with indicator lights
