Mk5 Remote AquaCam

Optional Accessories:

• HydroFlex 250mm Dome Port (+$200.00)
• HydroFlex Large Flat Port (+$150.00)
• Preston MDR 2 LCS FI&Z Kit (+$375.00)
• Alexa RCU-4 Junction Box (+$35.00)
• Preston LCS Cable Kit for Mk5 (+$80.00)
• 100ft. HD-SDI/Ethernet Cable Assembly (+$105.00)
• 24V to 12V DC Converter for Sony (+$25.00)

—

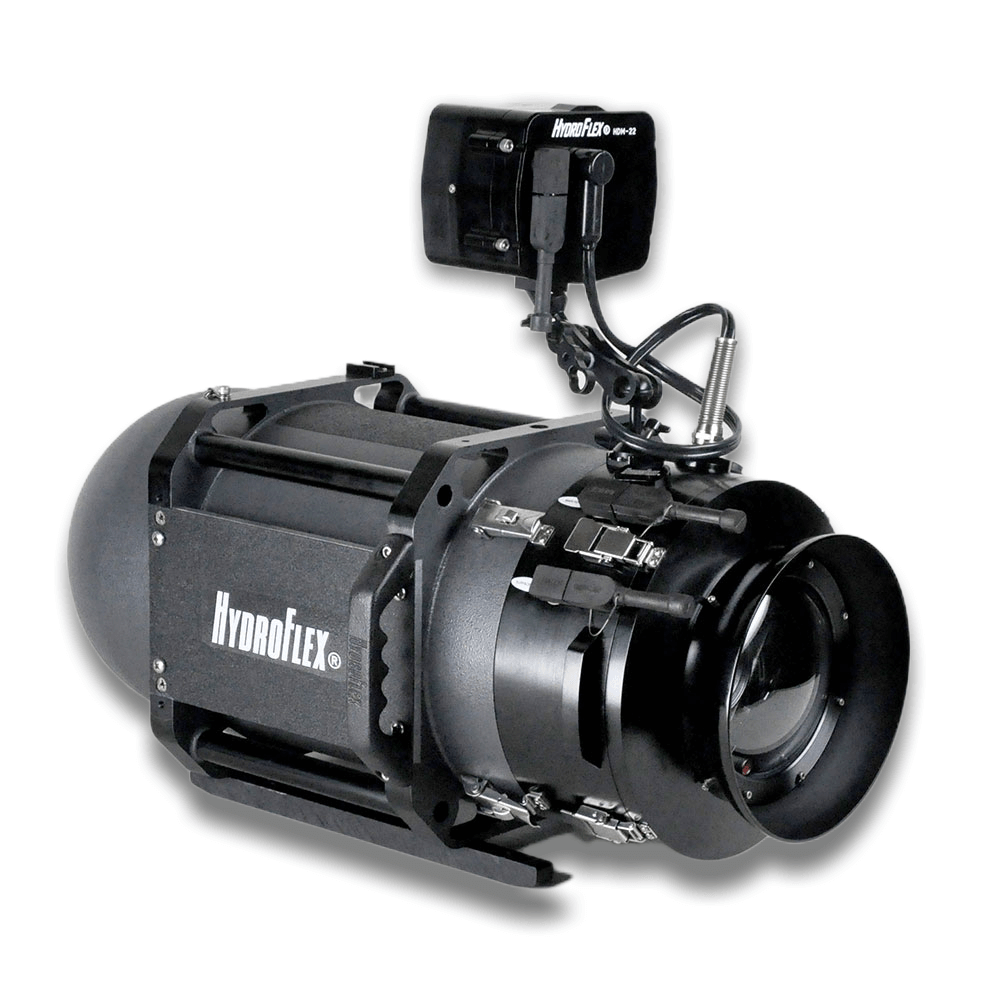

The Remote AquaCam Mk5 is the latest and most advanced generation of underwater camera housing from HydroFlex. It utilizes a Preston Remote Lens Control system to manipulate focus, iris & zoom of the lens, allowing for the use of a wide variety of professional cine lenses. The unique design of the housing also accommodates a variety of cameras, including the ARRI Alexa and RED DSMC2, V-Raptor, and Komodo. With block batteries(customer-provided) supplying power from the surface, you can shoot for hours without pulling the camera out of the water. The director views the full HD video via underwater HD-SDI cable, and the camera assistant pulls focus and adjusts zoom & iris with a Preston Hand Unit at the surface. Complete remote camera control over the Alexa is possible with the optional HydroFlex underwater Ethernet cable. The housing is depth-rated to 100’ and is supplied with a glass flat port. Optional larger Flat port or 250mm Dome port is also available.

Cameras accommodated in the Remote AquaCam Mk5:

Alexa Mini
Alexa Amira
Alexa XT
Alexa Plus

Sony F55
Sony F5
Sony Venice & II

RED DSMC2 bodies
RED V-Raptor
RED Komodo

Phantom Flex 4K
Phantom 4K
Phantom HD

Black Magic Ursa Mini PRO
Black Magic Ursa Mini 4.6K
Black Magic Ursa Mini 4K

Included Accessories

• HydroFlex 100′ HD Video Cable and 4.3″ HD Onboard Monitor

• Alexa Mini Kit, Alexa Kit, RED Kit, Sony Kit, Phantom Flex 4K Kit
